Description
NTN 33017U Metric Tapered roller bearing |
 |

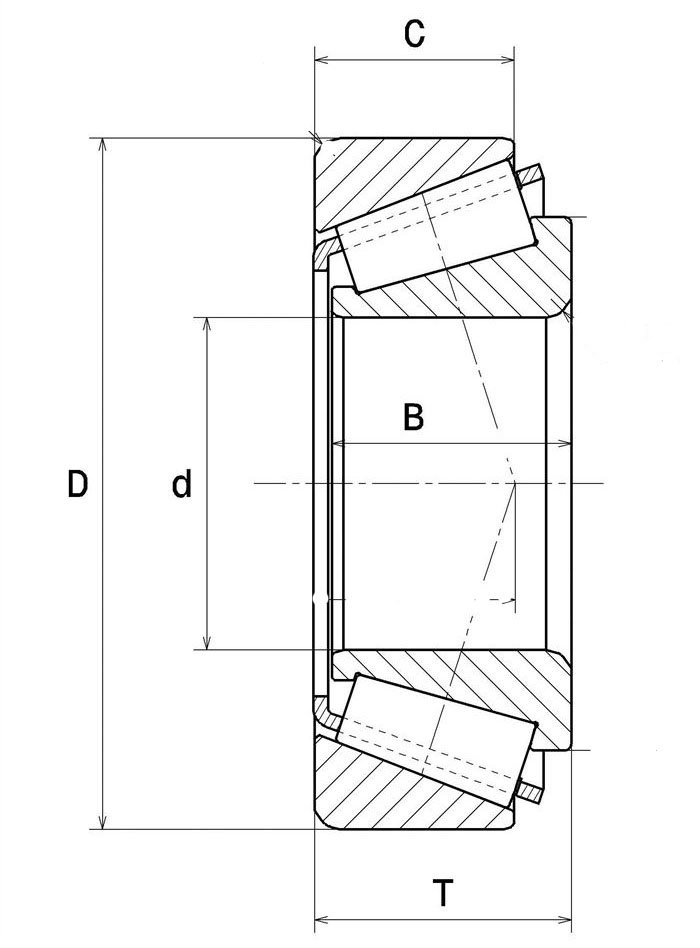

| NTN reference | Inner diameter |
Outer diameter | Inner ring width | Outer ring width | Total width | Weight |
|---|---|---|---|---|---|---|
| （d)mm | (D)mm | (B)mm | (C)mm | (T)mm | kg | |
| 33017U | 85 | 130 | 36 | 29.5 | 36 | 1.7 |
NTN 33017U mounting |
 |
| NTN reference | Maximum shaft link radius | Maximum housing link radius | Dynamic load capacity | Static load capacity | Limit speed with grease LUB | Limit speed with oil LUB |
|---|---|---|---|---|---|---|
| (ras max) | (r1as max) | C (kN) | C0 (kN) | rpm | rpm | |
| 33017U | 1,5 | 1,5 | 176,00 | 296,00 | 2600 | 3500 |
