Description
NTN 22205EAD1 22205EAKD1Spherical roller bearing |
 |

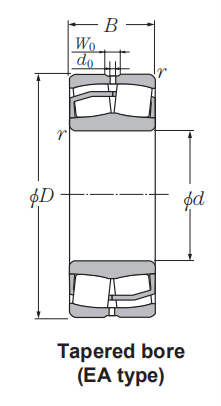

| Bearing numbers | Boundary dimensions | Basic load ratings | Limiting speeds | ||||||
| cylindrical bore | tapered bore | mm | rs min | static | dynamic | min-1 | |||
| d | D | B | Cr kN | C0r kN | grease | oil | |||
| 22205EAD1 | 22205EAKD1 | 25 | 52 | 18 | 1 | 57.3 | 46.1 | 10 400 | 13 000 |
NTN 22205EAD1 22205EAKD1Abutment and fillet dimensions |
 |
| Abutment and fillet dimensions | Constant | Axial load factors | Mass (kg.) | |||||||
| W0 | d0 | da min | Da min | ras max | e | Y1 | Y2 | Yo | cylindrical | tapered |
| 3 | 1.5 | 30 | 46 | 1 | 0.34 | 2 | 2.98 | 1.96 | 0.173 | 0.169 |
